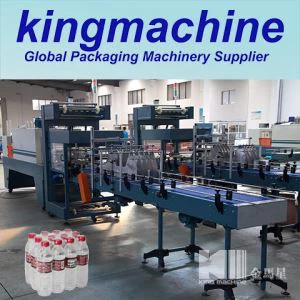

Tsiaj Lub raj mis PE Zaj duab xis Shrink Wrapping Tshuab

Tsiaj Lub raj mis PE Zaj duab xis Shrink Wrapping Tshuab

Lub tshuab yog tsim tshwj xeeb tshaj yog rau cov dej ntxhia, dej haus cawv, npias, cov khoom lag luam thiab tsis ntev infusion tshuaj lub raj mis ua ke, nrog rau kev ua haujlwm ruaj khov, thiab cov khoom ntim tau nruj thiab zoo. Nws tuaj yeem ua haujlwm raws li lub tshuab thawb ib zaug thaum xav tau kev kub ceev.

Xa kev nug

Khoom Taw qhia

Tsiaj Lub raj mis PE Zaj duab xis Shrink Wrapping Tshuab

Cov ntaub ntawv technical
Yam khoom KM-250A
Sab nraud qhov ntev ntawm qhov chaw L5050 W900 H2100mm
Max. Dimension ntawm wrappage L600 W400 H350mm
Shrink zaj duab xis khoom: PE\PVC\POF
Shrink zaj duab xis thickness 0.03-0.15mm
Thermo-shrink qhov max. Kub: 160-260 degree (tuaj yeem kho tau dawb)
Max. Cov zis ib feeb: 5-8PCS
Lub cev muaj zog 18Kw
Lub zog tiag tiag 15Kw / h
Qhov hluav taws xob 380/220V
Khoom hnyav 1T
Fais fab 1.1Kw 380V 2units, 6.5Kw 380V 4units

General specification ntawm lub tshuab:
Taiwan AIRTAC pneumatic tivthaiv 1set
Taiwan Teco zaus converter 1 teeb
Stainless hlau tis hom cua sov raj 12 daim
Tuam Tshoj -America kev koom tes Teflon conveying siv.
Shanghai Hemei hluav taws xob - lub cev muaj zog thiab Zhejiang Taili cab ceev kis tau tus mob.
Sab Qab Teb -Korea Autonics qhov sib thooj hloov.
Thermo sealing riam cam khwb cia txhuas cua sov board muaj tus cwj pwm txawm tias kub, lub neej ntev, yog peb cov khoom tshwj xeeb.
Tag nrho lub tshuab sab nrauv yas- txau, thav duab yog ua los ntawm cov qib siab - cov pa roj carbon zoo, qhov tseem ceeb txais yuav stainless hlau.
Ntoo rooj plaub thiab zaj duab xis ntim nyias.

Ceev hloov los ntawm zaus converter, ob ntu lub raj mis conveying ntaus ntawv.
Pushing lub raj mis, thermo sealing thiab txiav yog txais yuav pneumatic system.
Qhov sib thooj hloov tswj qhov ntev ntawm zaj duab xis.
Muab ob npaug rau- cua tshuab kiv cua tshuab, xyuas kom qhov kub thiab txias hauv qhov sib npaug sib npaug.
Super cua- ntim tshuab ua kom txias, xyuas kom zoo sai.
Anti- kub teflon conveying siv, conveying tsis tu ncua, siab -lub zog los tiv thaiv- puas.

Frequency unlimited ceev hloov thiab siv conveying qauv.
Convey belt height can be made according to client's requirement, adjustment range: ± 50mm
Wing hom stainless hlau cua sov system, endurance siv.
Cov khoom lag luam -cov kabmob pawg tuaj yeem ua tau raws li qhov xav tau ntawm cov khoom lag luam sai kom ntseeg tau tias cov kab ntau lawm ua haujlwm tas li.

Technical condition thiab yuav tsum tau:
1\Packing method:

: 3 4, 3 5 plaub hom txheej txheem pob.
(2) 1L / 1.5L / 2L / 2.5L Pob loj 3 3, 3 4; Pob me: 2 2, 2 3 plaub hom pob.
2\ Raws li tuaj yeem ntim tau, peb xav kom txais yuav pob nrog lub tais, ntim tsis tu ncua.
3 \ Pob ceev 5-8PCS / min
4 \ Pob khoom PE thermo shrinkage zaj duab xis dav (2{2}}0-600mm) \ thickness (0.08-0.12mm)

Kev daws teeb meem
1\ Cov qauv ntawm tag nrho lub tshuab yog raws li qhov tsis siv neeg npaj cov kab ntau lawm, thiab ua ke nrog peb lub tuam txhab paub tab technology ntawm WD-250A semi-automatic sealing thiab txiav tshuab
2\ Txhawm rau kom ntseeg tau tias nws ua haujlwm ruaj khov, peb txais yuav import, sib koom ua lag luam npe npe rau cov kab ntau lawm cov khoom tseem ceeb.
3\ Txais flake PE zaj duab xis, lub sab sauv thiab nqes rollers yog sealing thiab txiav txiav los ntawm lub tshuab. Thiab lub pob yuav rhuab thiab shrinkage mus rau packing efficiency.

Tsis muaj.	Description	Qauv	Qty	Mark
1	Automatic film packing machine	KM-250A	1 unit
2	Thermo-shrink packing machine	KM-250A	1 unit
3	Wing-type heating tube	Be ordered	2 pcs
4	Thermocouple		1 unit
5	Inner hexagon spanner		1 set
6	M6M8M10 direction		Two for each
7	and type screw		One for each
8	Frequency converter instruction		1 unit
9	Operation instruction		1 pcs	Include product certification and maintain card
