Tsis Siv Neeg Shrinking Label Adhesive Sticker Tshuab

Tsis Siv Neeg Shrinking Label Adhesive Sticker Tshuab

Name: Tuam Tshoj Tsis Siv Neeg Shrinking Label Adhesive Sticker Tshuab Chaw tsim tshuaj paus Chaw tsim tshuaj paus - Zoo tshaj tus nqi Shrink Wrapping Tshuab rau muag - King Tshuab
Brand: Huab tais tshuab
SKU: 169112771

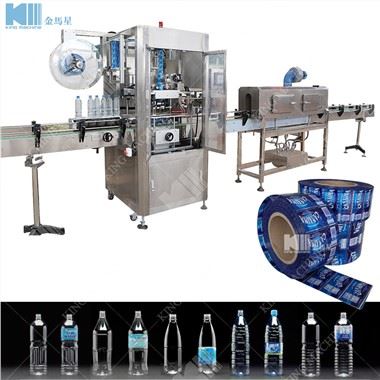

This shrink sleeve labeling applicator function is for PVC label shrink on the bottle ,used for beverage bottle package solution ,international advanced technology ,cover the circle label on PET bottle ,And then hot shrinking to fix on the position which bottle body designated.The machine's structure is compact,and suitable for the production line of different direction and different height ,The machine part adopts combination designing of modularization ,and make the machine reasonable ,the height adjustment adopts motors fluctuating,it is convenient to replace the material ,The special cutter head designing ,make the film rolling cut more exactly and reliably.

Xa kev nug

Khoom Taw qhia

Tsis Siv Neeg Shrinking Label Adhesive Sticker Tshuab

1.Qhov no Tsis Siv Neeg Shrink Lub Tes Tsho Tshuab yog ua los ntawm 304 stain -steel thiab zoo Aluminium alloy, kev qhia nyob rau hauv vim li cas, zawm, kho kom yooj yim.
2.Tsis xav tau hauv av taw bolts, nws tuaj yeem txav tau yooj yim, hloov pauv ntau yam khoom lag luam.
3.Shrink zaj duab xis ntim daim ntawv lo thav duab, raws li qhov sib txawv ntim ntawv daim ntawv yeeb nkab kho ntau yam 5-10
4.Kev siv tshuab tuaj yeem hloov kho yooj yim yam tsis muaj cov cuab yeej, uas ua rau nws tsim nyog rau qhov ntau thiab tsawg lub raj mis.
5.Forced insertion tsim proves tsim nyog thiab yooj yim ntawm shrink labeling tshuab.
6.Volume daim ntawv txiav ntawm kev ntsuas qhov system xyuas kom meej me me yuam kev
7.Special tsim riam phaj yog hloov dawb nrog rau cov specifications.
8.Newel nip system, hloov thiab installation sai yam tsis muaj cuab yeej.
9.Disport lub raj mis ntsia hlau, nyob hauv pluaj, thauj saw saws synchronization kho qauv, kho qhov chaw.
10.Qhia Japanese servo lub cev muaj zog thiab siab -dawb duab hluav taws xob, qhov ntev ntawm daim ntawv txiav yog precision.

Qauv	KM-Series
Lub cav loj loj (lengthwidthheight)	2000L x 950W x 2000H (mm)
Lub ntsiab cav ntau lawm ceev	10-400 BMP
Main cav fais fab mov	AC 3 theem 220v / 380v
Lub raj mis / Can Flat Width	48-185 hli
Lub raj mis / cov ntaub ntawv tuaj yeem	iav, hlau, yas
Daim ntawv lo ntev	25mm-280mm
Daim ntawv thickness	0.03mm -0.13mm
Cov ntaub ntawv sau npe	PVC.PET.OPS
Lub raj mis / tau qhov siab	15 hli-320mm
Lub raj mis / lub taub hau	30.5mm-120mm
Lub raj mis / tuaj yeem tsim	round, square, oval, rectangular
Main cav hnyav	500 kg
